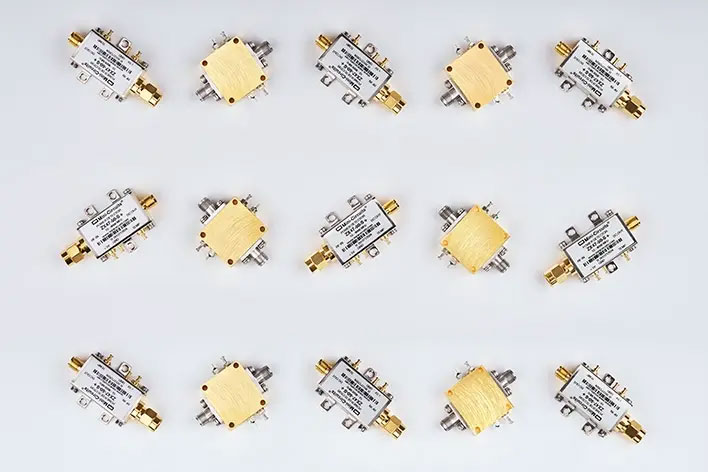

Power Detectors
- 型号
- spanning -60 to +20 dBm
- 规格
- 0.01 to 67 GHz
- 品牌
- Mini-Circuits
| Model Number | Case Style | Freq. Low (MHz) | Freq. Hi (MHz) | Dynamic Range @ ±1 dB Error (dBm) Typ. | Output Voltage Range (V), Typ. | VSWR (:1), Typ. | Pulse Response Rise Time (nsec), Typ. | Pulse Response Fall Time (nsec), Typ. | Supply Voltage (V) | Supply Current (mA) |
|---|
| ZV47-E673RMS+ | AV2578-4 | 100 | 67000 | -35 to 0 | 0 - 1.20 | 1.7 | 2900 | 8100 | 3.3 | 34 |
| ZV47-K44+ | AV2578-3 | 500 | 43500 | -30 to +15 | 0 - 4.30 | 2.40 | 4 | 50 | 5.0 | 3 |
| ZV47-K44RMS+ | AV2578-4 | 100 | 40000 | -35 to 0 | 0 - 1.20 | 1.60 | 2900 | 8100 | 3.3 | 30 |
| ZX47-40-S+ | HN1173 | 10 | 8000 | -40 to +20 | 0.50 - 2.10 | 1.20 | 400 | 10 | 4.5 | 100 |
| ZX47-40LN-S+ | HN1173 | 10 | 8000 | -40 to +20 | 0.50 - 2.10 | 1.20 | 800 | 400 | 4.5 | 100 |
| ZX47-50-S+ | HN1173 | 10 | 8000 | -45 to +15 | 0.50 - 2.10 | 1.20 | 400 | 10 | 4.5 | 100 |
| ZX47-50LN-S+ | HN1173 | 10 | 8000 | -45 to +15 | 0.50 - 2.10 | 1.20 | 800 | 400 | 4.5 | 100 |
| ZX47-55-S+ | HN1173 | 10 | 8000 | -50 to +10 | 0.50 - 2.10 | 1.40 | 400 | 10 | 4.5 | 100 |
| ZX47-55LN-S+ | HN1173 | 10 | 8000 | -50 to +10 | 0.50 - 2.10 | 1.40 | 800 | 400 | 4.5 | 100 |
| ZX47-60-S+ | HN1173 | 10 | 8000 | -60 to +5 | 0.50 - 2.10 | 1.70 | 400 | 10 | 5.0 | 100 |
| ZX47-60LN-S+ | HN1173 | 10 | 8000 | -60 to +5 | 0.50 - 2.10 | 1.70 | 800 | 400 | 5.0 | 100 |
