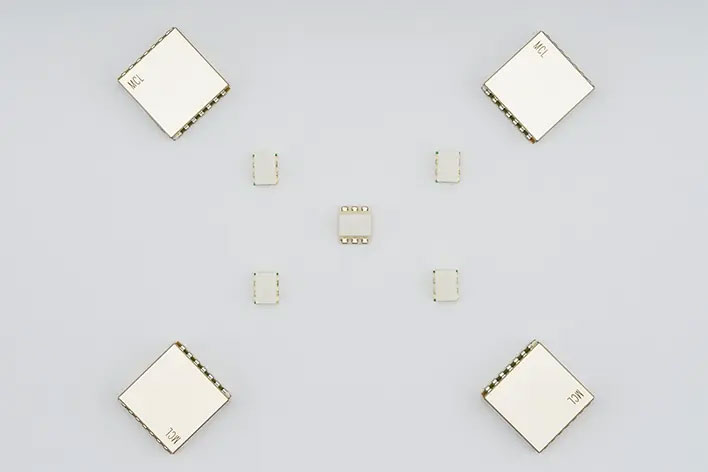

Modulators/Demodulators
- 型号
- selection of QPSK
- 规格
- DC to 5 MHz
- 品牌
- Mini-Circuits
I & Q Modulators, Surface Mount, 52 MHz to 176 MHz
| Model Number | Case Style | RF/LO Freq. Low (MHz) | RF/LO Freq. Hi (MHz) | I&Q Freq. (MHz) Min., DC to … | I&Q Freq. (MHz) Max., DC to … | Conv. Loss (dB), Typ. | Conv. Loss (dB), (σ) | Conv. Loss (dB), Max. | Carrier Rejection (dBc), Typ. | Carrier Rejection (dBc), Max. | Sideband Rejection (dBc) Typ. | Sideband Rejection (dBc) Min. | Harmonic Suppression (dBc), 3XI/Q Typ. | Harmonic Suppression (dBc), 3XI/Q Max. | Harmonic Suppression (dBc), 5XI/Q Typ. | Harmonic Suppression (dBc), 5XI/Q Max. |
|---|
| JCIQ-88M+ | BG291 | 52 | 88 | DC | 5 | 5.6 | 0.10 | 7.0 | 40 | 32 | 35 | 30 | 45 | 35 | 65 | 50 |
| JCIQ-176M+/td> | BG291 | 104 | 176 | DC | 5 | 5.6 | 0.10 | 7.0 | 35 | 30 | 35 | 30 | 45 | 35 | 65 | 50 |
I & Q Demodulators, Surface Mount, 104 MHz to 176 MHz
| Model Number | Case Style | RF/LO Freq. Low (MHz) | RF/LO Freq. Hi (MHz) | I&Q Freq. (MHz) Min., DC to … | I&Q Freq. (MHz) Max., DC to … | Conv. Loss (dB), Typ. | Conv. Loss (dB), (σ) | Conv. Loss (dB), Max. | Amplitude Unbalance (dB) Typ. | Amplitude Unbalance (dB) Max. | Phase Unbalance (deg.) Typ. | Phase Unbalance (deg.) Max. | Harmonic Suppression (dBc), 3XI/Q Typ. | Harmonic Suppression (dBc), 3XI/Q Max. | Harmonic Suppression (dBc), 5XI/Q Typ. | Harmonic Suppression (dBc), 5XI/Q Max. |
|---|
| JCIQ-176D+ | BG291 | 104 | 176 | DC | 5 | 5.5 | 0.10 | 7.0 | 0.15 | 0.60 | 2 | 5 | 52 | 40 | 65 | 50 |
Attenuators / Switches / Bi-Phase, Surface Mount, 2 to 400 MHz
| Model Number | Case Style | Freq. Range In Low (MHz) | Freq. Range In Hi (MHz) | Freq. Range Con Low (MHz) | Freq. Range Con Hi (MHz) | Mid-Band Insertion Loss (dB) at ±20 mA, Typ. | Mid-Band Insertion Loss (dB) at ±20 mA, Max. | Total Range Insertion Loss (dB) at ±20 mA, Typ. | Total Range Insertion Loss (dB) at ±20 mA, Max. | Input Power (dBm) at 1 dB Compr., at ±20 mA | No Damage Input Power (dBm) at ±20 mA | In-Out Isolation (dB) at 0 mA, Low Range, Typ. | In-Out Isolation (dB) at 0 mA, Mid Range, Typ. | In-Out Isolation (dB) at 0 mA, Upper Range, Typ. | Bi-Phase X (±20 mA), Amp (dB), Mid-Band, Typ. | Bi-Phase X (±20 mA), Amp (dB), Total Range, Typ. |
|---|
| RAS-1+ | TT241 | 2 | 400 | DC | 0.05 | 1.4 | 2.4 | 1.6 | 3.2 | 20 | 25 | 65 | 45 | 32 | 0.10 | 0.1 |
| SYAS-1+ | TTT167 | 2 | 400 | DC | 0.05 | 1.4 | 2.0 | 1.6 | 3.0 | 20 | 25 | 65 | 45 | 35 | 0.1 | 0.1 |
| TFAS-1SM+ | NNN150 | 2 | 400 | DC | 0.05 | 1.4 | 2.0 | 1.6 | 3.0 | 20 | 25 | 65 | 45 | 35 | 0.1 | 0.1 |
I & Q Modulators
| Model Number | Case Style | RF/LO Freq. Low (MHz) | RF/LO Freq. Hi (MHz) | I&Q Freq. Low (MHz) | I&Q Freq. Hi (MHz) | Conv. Loss (dB) Typ. | Conv. Loss (dB) (σ) | Conv. Loss (dB) Max. | Carrier Rej. (dBc), Typ. | Carrier Rej. (dBc), Min. | Sideband Rej. (dBc), Typ. | Sideband Rej. (dBc), Min. | 3XI/Q Harmonic Suppression (dBc), Typ. | 3XI/Q Harmonic Suppression (dBc), Min. | 5XI/Q Harmonic Suppression (dBc), Typ. | 5XI/Q Harmonic Suppression (dBc), Min. |
|---|
| MIQA-21M+ | A06 | 20 | 23 | DC | 3 | 6.2 | 0.14 | 7.0 | 50 | 40 | 40 | 30 | 48 | 40 | 65 | 55 |
I & Q Demodulators
| Model Number | Case Style | RF/LO Freq. Range Low (MHz) | RF/LO Freq. Range Hi (MHz) | I&Q Freq. Range Low (MHz) | I&Q Freq. Range High (MHz) | Conv. Loss (dB) Typ. | Conv. Loss (dB) (σ) | Conv. Loss (dB) Max. | Amplitude Unbalance (dB) Typ. | Amplitude Unbalance (dB) Max. | Phase Unbalance (deg.) Typ. | Phase Unbalance (deg.) Max. | Harmonic Suppression (dBc) 3xI/Q Typ. | Harmonic Suppression (dBc) 3xI/Q Min. | Harmonic Suppression (dBc) 5xI/Q Typ. | Harmonic Suppression (dBc) 5xI/Q Min. |
|---|
| MIQA-21D+ | A06 | 20 | 23 | DC | 3 | 6.1 | 0.15 | 7.0 | 0.15 | 0.6 | 0.7 | 3.0 | 64 | 35 | 67 | 50 |
Attenuator / Switches / Bi-Phase, Plug-In, 1 to 200 MHz
| Model Number | Case Style | RF Freq. Low (MHz) | RF Freq. Hi (MHz) | Control Freq. Low (MHz) | Control Freq. Hi (MHz) | Mid-Band Insertion Loss (dB) at ±20 mA, Typ. | Mid-Band Insertion Loss (dB) at ±20 mA, Max. | Total-Band Insertion Loss (dB) at ±20 mA, Typ. | Total-Band Insertion Loss (dB) at ±20 mA, Max. | Input Pwr @ 1 dB Compr. at ±20 mA, Typ. | Max. No Damage Input Pwr | In-Out Isolation (dB) at 0 mA, Low Range Typ. | In-Out Isolation (dB) at 0 mA, Low Range Max. | In-Out Isolation (dB) at 0 mA, Mid-Range Typ. | In-Out Isolation (dB) at 0 mA, Mid-Range Max. | In-Out Isolation (dB) at 0 mA, Upper-Range Typ. | In-Out Isolation (dB) at 0 mA, Upper-Range Max. | Bi-Phase Amp (dB) at ±20 mA, Total Range, Typ. |
|---|
| PAS-1+ | A01 | 5 | 450 | DC | 0.05 | 3.5 | 4.0 | 3.5 | 4.7 | 20 | 29 | 65 | 50 | 45 | 35 | 35 | 25 | 0.1 |
| PAS-3+ | A01 | 1 | 200 | DC | 0.05 | 1.4 | 2.0 | 1.6 | 2.5 | 15 | 29 | 65 | 50 | 50 | 40 | 50 | 35 | 0.1 |
| PAS-2000+ | A05 | 100 | 2000 | DC | 0.5 | 4.2 | 6.5 | 5.4 | 7.5 | 19 | 25 | 30 | 22 | - | - | 26 | 20 | 0.4 |
