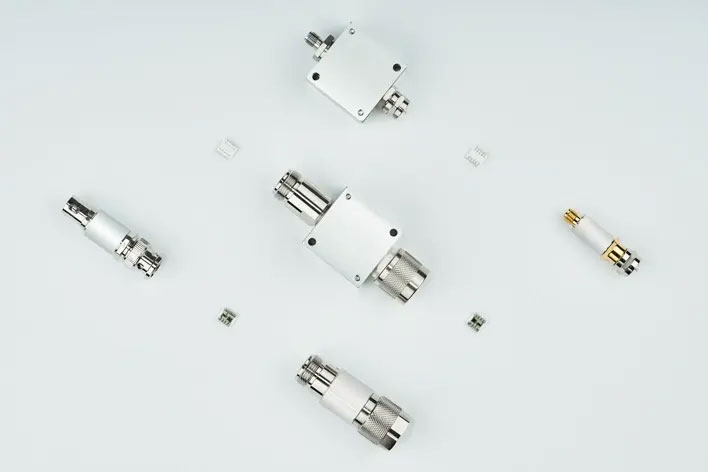

Impedance Matching Pads
- 型号
- 50 Ohm / 75 Ohm
- 规格
- 3000 MHz
- 品牌
- Mini-Circuits
| Model Number | Case Style | Freq. Range Low (MHz) | Freq. Range High (MHz) | Nom. Attenuation (dB) | Attenuation Flatness (dB) Typ. | VSWR (:1), Typ. | Connector, Typ. | Connector, 50 ohm | Connector, 75 ohm |
|---|
| BMP-5075+ | FF747 | DC | 2000.0 | 5.7±0.10 | 0.3 | 1.22 | BNC | Female | Male |
| BMP-5075R+ | FF747 | DC | 2000.0 | 5.7±0.10 | 0.3 | 1.22 | BNC | Male | Female |
| SFFF-5075+ | FF1833 | DC | 3000.0 | 5.9 | 0.2 | 1.17 | F-SMA | SMA-Female | F-Female |
| SFQFM-5075+ | FF2586 | DC | 3000.0 | 5.7 | 0.2 | 1.2 | SMA-F | SMA-Female | F-Male |
| UNMP-5075+ | FF779 | DC | 3000.0 | 5.7±0.15 | 0.3 | 1.3 | TYPE 'N' | Female | Male |
| UNMP-5075-33+ | FF779 | DC | 3000.0 | 5.7±0.15 | 0.3 | 1.05 | TYPE 'N' | Female | Male |
| UNMP-5075-33R+ | FF779 | DC | 3000.0 | 1.7 | 0.2 | 1.15 | TYPE 'N' | Male | Female |
| UNMP-R5075-33+ | FF779
| DC | 3000.0 | 5.7±0.15 | 0.3 | 1.05 | TYPE 'N' | Male | Female |
| Z7550R-FMSF+ | H16 | DC | 2500.0 | 5.9 | - | 1.2 | SMA-F | SMA-Female | F-Male |
