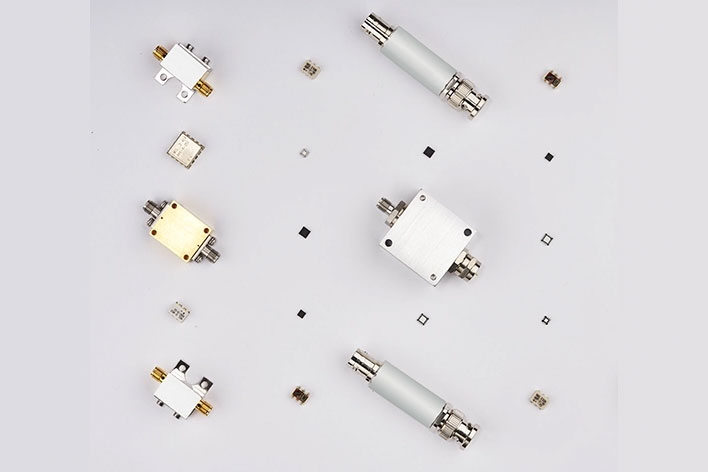

Frequency Multipliers

型号
Frequency Multipliers

规格
100 KHz to 72 GHz

品牌
Mini-Circuits

13918167735

产品参数
说明书下载

Model Number	Multiply Factor [X]	Input Freq. Low (MHz)	Input Freq. High (MHz)	Output Freq. Low (MHz)	Output Freq. High (MHz)	RF Input Power (dBm) Min.	RF Input Power (dBm) Max.	Conv. Loss (dB) Typ.	F1 Fundamental Suppression Below F[X] (dBc) Typ.	F[X-1] Suppression Below F[X] (dBc) Typ.	F[X+1] Suppression Below F[X] (dBc) Typ.
AK-2+	2	1	500	2	1000	1	10	13.5	30	-	40
AK-3000+	2	70	1500	140	3000	12	15	10.5	25	-	30
AMK-2-13+	2	10	500	20	1000	4	10	11.4	45	-	45
AMK-3-452+	3	1000	1500	3000	4500	10	14	14.5	-2	55	55
CY2-44+	2	6200	20000	12400	40000	12	18	14	26	-	34
CY2-44-D+	2	7000	20000	14000	40000	12	18	13	30	-	30
CY2-143+	2	2000	7000	4000	14000	12	18	12	30	-	32
CY2-143-D+	2	2000	7000	4000	14000	12	18	12	30	-	32
CY2-283+	2	3500	14000	7000	28000	12	18	13	34	-	40
CY2-283-D+	2	3500	14000	7000	28000	12	18	13	35	-	34
CY3-64-D+	3	10000	20000	30000	60000	12	19	21	30	33	42
CY3-223+	3	3330	7330	10000	22000	12	18	17	34	45	50
CY3-223-D+	3	3330	7330	10000	22000	12	18	17	34	45	50
CY3-453+	3	6660	15000	20000	45000	12	17	21	39	46	40
CY3-453-D+	3	6660	15000	20000	45000	15	17	20	42	41	34
CY3-723-D+	3	13333	24000	40000	72000	12	19	21.1	41	33	33
FD-2+	2	5	500	10	1000	1	15	13	30	-	40
FK-3000+	2	70	1500	140	3000	12	15	11	25	-	30
KBA-20	2	1600	2200	3200	4400	11	15	12	12	-	20
KBA-20+	2	1600	2200	3200	4400	11	15	12	12	-	20
KBA-40	2	2700	4800	5400	9600	10	16	12.3	18	-	26
KBA-40+	2	2700	4800	5400	9600	10	16	12.3	18	-	26
KC2-11+	2	500	1100	1000	2200	5	10	10.5	27	-	34
KC2-19+	2	1100	1900	2200	3800	5	10	10.5	24	-	30
KC2-36+	2	1700	3600	3400	7200	8	13	11	18	-	30
KC2-50+	2	3500	5000	7000	10000	7	12	12.5	15	-	28
KSX2-14+	2	2500	5000	5000	10000	13	17	12	22	-	31
KSX2-24+	2	5000	10000	10000	20000	10	16	14	29	-	29
KSX2-442+	2	600	2200	1200	4400	7	15	11	22	-	35
KSX2-722+	2	1300	3600	2600	7200	9	13	12	20	-	28
LK-3000+	2	70	1500	140	3000	12	15	10.5	27	-	35
MK-2	2	5	500	10	1000	1	15	13	25	-	40
MK-3	2	0.05	150	0.1	300	0	13	11	35	-	40
RK-2+	2	5	500	10	1000	1	15	13.5	30	-	40
RK-3+	2	0.05	150	0.1	300	0	13	11	35	-	40
RKK-4-23+	4	320	500	1280	2000	11	15	24.5	27	38	30
RKK-4-112+	4	200	275	800	1100	17	23	22.5	36	30	23
RKK-4-252+	4	430	630	1720	2520	16	19	25	33	30	35
RKK-4-442+	4	900	1100	3600	4400	19	23	24.5	27	23	31
RMK-3-14+	3	2200	3335	6600	10005	13	17	14.5	6	40	37
RMK-3-31+	3	9	12	27	36	12	17	14	4	60	60
RMK-3-33+	3	700	1000	2100	3000	12	17	17	4.5	47.5	43.5
RMK-3-92+	3	150	300	450	900	12	17	14	-1	66	67
RMK-3-93+	3	1800	3000	5400	9000	7	11	15	6	55	55
RMK-3-122+	3	300	400	900	1200	0	6	14.5	6	48	52
RMK-3-123+	3	2200	4000	6600	12000	13	17	15.5	5	33	45
RMK-3-153+	3	2600	5000	7800	15000	7	11	17	1	48	50
RMK-3-212+	3	400	700	1200	2100	12	17	17	-1.4	50	53
RMK-3-332+	3	700	1100	2100	3300	10	15	15.6	3	40	37
RMK-3-451+	3	100	150	300	450	12	17	13.2	4	52	50
RMK-3-662+	3	1600	2200	4800	6600	9	13	15	6	45	38
RMK-3-722+	3	1525	2400	4575	7200	7	11	14	3	55	55
RMK-3-812+	3	1800	2700	5400	8100	0	6	16	6	40	37
RMK-3-1052+	3	2200	3500	6600	10500	7	11	14.5	6	52	50
RMK-3-1262+	3	2250	4200	6750	12600	7	11	15.5	5	45	50
RMK-5-13+	5	150	200	750	1000	17	17	21.2	2	63	68
RMK-5-51+	5	7.5	10.5	37.5	52.5	0	5	22.9	-1.3	39	37
RMK-5-52+	5	50	100	250	500	17	17	22	2	56	57
RMK-5-83+	5	1000	1600	5000	8000	7	11	28	-3.5	56.2	58.3
RMK-5-352+	5	550	700	2750	3500	17	17	22	6.5	40	40
RMK-5-472+	5	675	950	3375	4750	10	15	22	4	55	60
RMK-5-571+	5	70	115	350	575	22	24	21	2	43	42
RMK-5-751+	5	100	150	500	750	17	17	22	-1	60	67
RMK-5-972+	5	1620	1950	8100	9750	7	11	28.5	-0.2	55	52
RMK-5-2251+	5	300	450	1500	2250	17	17	21	5.3	52	56
RMK-5-2751+	5	450	550	2250	2750	17	17	22	4.8	54	57
RMK-7-81+	7	7.5	11.5	52.5	80.5	8	12	27	3	47	45
SK-2+	2	1	500	2	1000	1	10	13.5	30	-	40
SYK-2-33+	2	50	1500	100	3000	11	15	11.5	30	-	33
SYK-2R	2	10	1000	20	2000	12	16	10.5	35	-	42
SYK-2R+	2	10	1000	20	2000	12	16	10.5	35	-	42
ZX90-2-11-S+	2	500	1100	1000	2200	5	10	10.5	27	-	34
ZX90-2-13-S+	2	10	500	20	1000	4	10	11	45	-	45
ZX90-2-19-S+	2	1100	1900	2200	3800	5	10	10.5	27	-	30
ZX90-2-24-S+	2	5000	10000	10000	20000	11	16	12	30	-	30
ZX90-2-36-S+	2	1700	3600	3400	7200	8	13	11	28	-	32
ZX90-2-50-S+	2	3500	5000	7000	10000	7	12	12.5	15	-	28
ZX90-3-122-S+	3	300	400	900	1200	0	6	16	48	60	70
ZX90-3-452-S+	3	1000	1500	3000	4500	10	16	14.7	40	55	55
ZX90-3-692-S+	3	1700	2300	5100	6900	9	13	14.7	40	40	40
ZX90-3-812-S+	3	2000	2700	6000	8100	0	5	15	30	48	48
ZX90-12-63-S+	12	375	500	4500	6000	-4	0	6.5	65	26	26
ZXF90-2-44-K+	2	6200	20000	12400	40000	12	18	15	25	-	28
ZXF90-2-153-K+	2	4500	7500	9000	15000	16	22	15	48	42	23
ZXF90-3-64-E+	3	10000	20000	30000	60000	12	19	21	35	40	40
ZXF90-3-223-K+	3	3330	7330	10000	22000	12	18	17	55	50	35
ZXF90-3-443-K+	3	6660	14500	20000	43500	12	18	20	47	40	39
ZXF90-3-453-V+	3	6660	15000	20000	45000	12	18	20	47	40	39
ZXF90-3-723-E+	3	13330	24000	40000	72000	14	20	23	38	35	35
ZXF90A-3-34X+	3	6000	12000	18000	36000	-3.50	1.50	5	55	55	35
