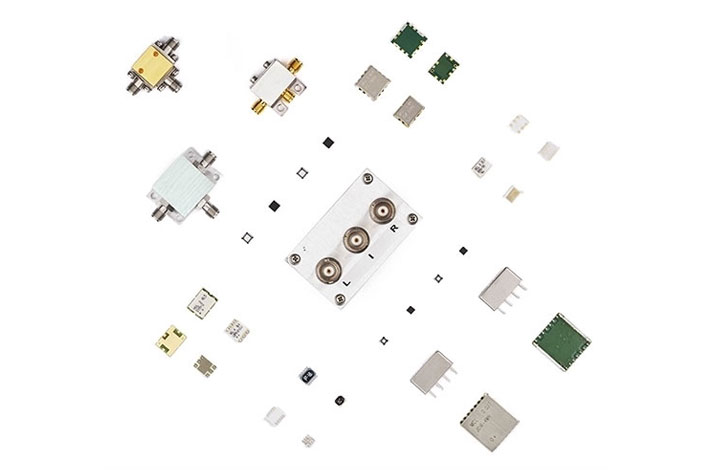

Frequency Mixers

13918167735

Model Number	LO Level (dBm)	RF Freq. Low (MHz)	RF Freq. High (MHz)	LO Freq. Low (MHz)	LO Freq. High (MHz)	IF Freq. Low (MHz)	IF Freq. High (MHz)	Conversion Loss (dB) Typ.	LO-RF Isolation (dB) Typ.	LO-IF Isolation (dB) Typ.	Input P1dB (dBm) Typ.	Input IP3 (dBm) Typ.
ADE-1+	7	0.5	500	0.5	500	DC	500	5	55	40	1	15
ADE-1ASK+	7	2	600	2	600	DC	600	5.3	50	45	1	16
ADE-1H+	17	0.5	500	0.5	500	DC	500	5.3	52	42	14	23
ADE-1HW+	17	5	750	5	750	DC	750	6	48	40	14	26
ADE-1L+	3	2	500	2	500	DC	500	5.2	55	45	0	16
ADE-1LH+	10	0.5	500	0.5	500	DC	500	5	55	45	5	15
ADE-1MH+	13	2	500	2	500	DC	500	5.2	50	45	9	17
ADE-1MHW+	13	0.5	600	0.5	600	DC	600	5.2	53	44	9	17
ADE-2+	7	5	1000	5	1000	DC	1000	6.67	47	45	1	20
ADE-2ASK+	7	1	1000	1	1000	DC	1000	5.4	45	32	1	12
ADE-3G+	7	2300	2700	2300	2700	DC	400	5.6	36	26	1	13
ADE-4+	7	200	1000	200	1000	DC	800	6.8	53	40	1	15
ADE-5+	7	5	1500	5	1500	DC	1000	6.6	40	30	1.2	15
ADE-6+	7	0.05	250	0.05	250	DC	200	4.6	40	45	1	10
ADE-10H+	17	400	1000	400	1000	DC	500	7	39	25	14	30
ADE-11X+	7	10	2000	10	2000	5	1000	7.1	36	37	1	9
ADE-12+	7	50	1000	50	1000	DC	1000	7	33	37	1	17
ADE-12H+	17	500	1200	500	1200	DC	250	6.7	34	28	14	28
ADE-12MH+	13	10	1200	10	1200	DC	1200	6.3	45	42	9	22
ADE-13+	7	50	1600	50	1600	50	1000	8.1	40	35	1	11
ADE-17H+	17	100	1700	100	1700	50	1500	7.2	35	32	14	25
ADE-18W+	7	1750	3500	1750	3500	DC	700	5.4	33	12	1	11
ADE-20+	7	1500	2000	1500	2000	DC	300	5.4	31	28	1	14
ADE-25MH+	13	5	2500	5	2500	5	1500	6.9	34	32	9	18
ADE-30+	7	200	3000	200	3000	DC	1000	4.5	35	20	1	14
ADE-30W+	7	300	4000	300	4000	DC	950	6.8	35	16	1	12
ADE-35+	7	1600	3500	1600	3500	DC	1500	6.3	25	22	1	11
ADE-35MH+	13	5	3500	5	3500	5	2500	6.9	33	28	9	18
ADE-42MH+	13	5	4200	5	4200	5	3500	7.5	29	26	9	17
ADE-201FMH+	13	90	200	154	264	10	150	6.4	42	35	16	30
