DC Blocks
- 型号
- SMA, N-type, BNC
- 规格
- 100 kHz to 65 GHz
- 品牌
- Mini-Circuits

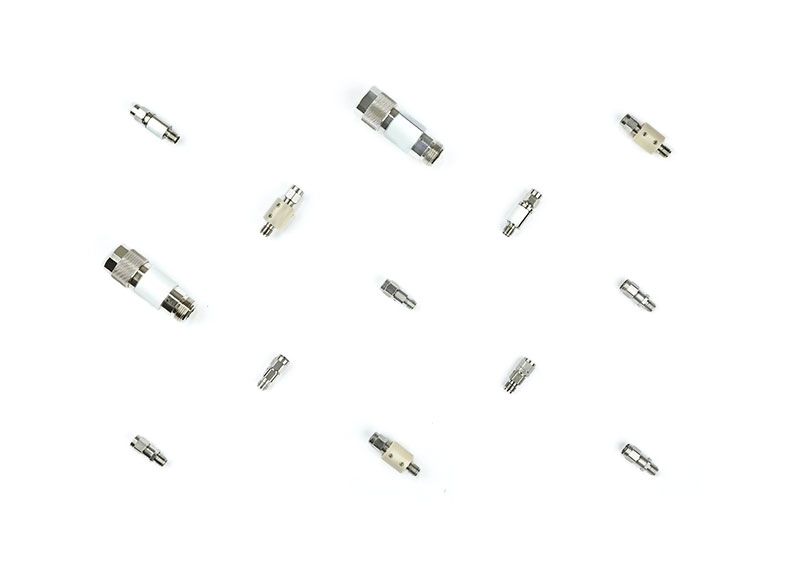

Coaxial DC Blocks, Wide Band, 0.1 MHz to 65 GHz
| Model Number | Case Style | F Low (MHz) | F High (MHz) | Insertion Loss (dB) Typ. | Return Loss (dB) Typ. | Connector Type |
|---|
| BLK-6-N+ | FF779
| 10 | 6000 | 0.05 | 45 | N |
| BLK-18-S+ | FF888
| 10 | 18000 | 0.15 | 26 | SMA |
| BLK-18W-N+ | FF779-1
| 50 | 18000 | 0.24 | 25.7 | N |
| BLK-18W-S+ | DJ2668
| 10 | 18000 | 0.41 | 23 | SMA |
| BLK-89-S+ | FF888
| 0.1 | 8000 | 0.1 | 25 | SMA |
| BLK-222+ | FF747
| 10 | 2200 | 0.2 | 28 | BNC |
| BLK-222-75+ | FF747
| 10 | 2200 | 0.1 | 25 | BNC |
| BLK-E653+ | DJ2591-1
| 10 | 65000 | 0.7 | 22 | 1.85mm |
| BLK-K44+ | DJ1861-1
| 10 | 40000 | 0.43 | 25 | 2.92mm |
| BLK-V54+ | DJ2264
| 10 | 50000 | 0.51 | 23 | 2.4mm |
| BLKD-183-S+ | FF1048-2
| 10 | 18000 | 0.43 | 18.52 | SMA |
