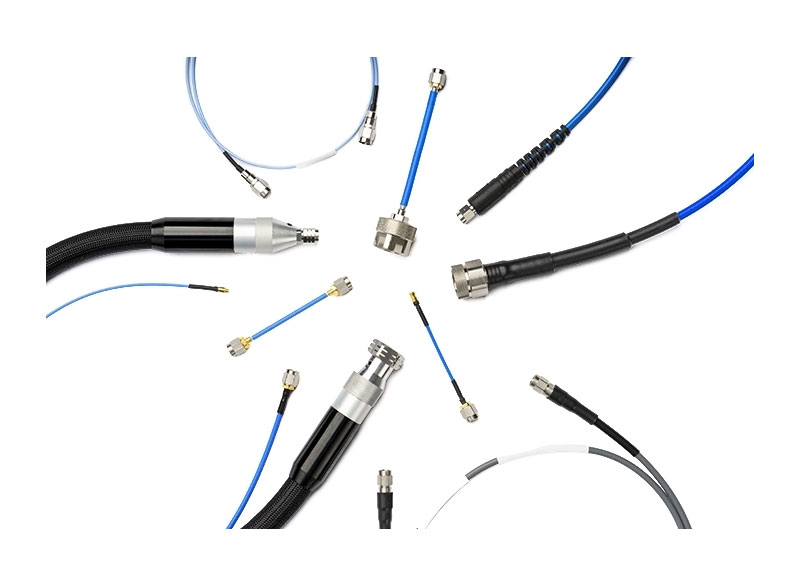

Cables

型号
SMA, N-Type, F-Type, BNC, and 2.92mm

规格
50-Ohm and 75-Ohm

品牌
Mini-Circuits

13918167735

产品参数
说明书下载

Model Number	Category	Freqency High (GHz)	Insertion Loss (dB)	Length (ft)	Connector 1 Type	Connector 1 Gender	Connector 1 Orientation	Connector 1 Mounting Type	Connector 2 Type	Connector 2 Gender
047-12SMP+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	1.51	1.0	SMP	Female	Straight	Standard	SMP	Female
047-12SMPR+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	1.53	1.0	SMP	Female	Right Angle 0° Clocked	Standard	SMP	Female
047-12SMPRC+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	1.55	1.0	SMP	Female	Right Angle 180° Clocked	Standard	SMP	Female
047-12SMPSM+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	1.51	1.0	SMA	Male	Straight	Standard	SMP	Female
047-3SMP+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.34	0.25	SMP	Female	Straight	Standard	SMP	Female
047-3SMPR+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.39	0.25	SMP	Female	Right Angle 0° Clocked	Standard	SMP	Female
047-3SMPRC+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.39	0.25	SMP	Female	Right Angle 180° Clocked	Standard	SMP	Female
047-3SMPSM+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.35	0.25	SMA	Male	Straight	Standard	SMP	Female
047-6SMP+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.72	0.5	SMP	Female	Straight	Standard	SMP	Female
047-6SMPR+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.75	0.5	SMP	Female	Right Angle 0° Clocked	Standard	SMP	Female
047-6SMPRC+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.78	0.5	SMP	Female	Right Angle 180° Clocked	Standard	SMP	Female
047-6SMPSM+	Jumper, Tin Soaked, 0.047", 18 GHz	18.0	0.75	0.5	SMA	Male	Straight	Standard	SMP	Female
086-10BM+	Jumper, Tin Soaked, 0.086", 3 GHz	3.0	0.22	0.83	BNC	Male	Straight	Standard	BNC	Male
086-10SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.78	0.83	SMA	Male	Straight	Standard	SMA	Female
086-10SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.85	0.83	SMA	Male	Straight	Standard	SMA	Male
086-10SMP+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.05	0.83	SMP	Female	Straight	Standard	SMP	Female
086-10SMPR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.83	0.83	SMP	Female	Right Angle 0° Clocked	Standard	SMP	Female
086-10SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.16	0.83	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-10SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.12	0.83	SMA	Male	Straight	Standard	SMA	Male
086-11SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.1	0.92	SMA	Male	Straight	Standard	SMA	Female
086-11SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.17	0.92	SMA	Male	Straight	Standard	SMA	Male
086-11SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.22	0.92	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-11SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.8	0.92	SMA	Male	Straight	Standard	SMA	Male
086-12BM+	Jumper, Tin Soaked, 0.086", 3 GHz	3.0	0.27	1.0	BNC	Male	Straight	Standard	BNC	Male
086-12KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	1.7	1.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-12SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.9	1.0	SMA	Male	Straight	Standard	SMA	Female
086-12SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.01	1.0	SMA	Male	Straight	Standard	SMA	Male
086-12SMMCR+	Jumper, Tin Soaked, 0.086", 6 GHz	6.0	0.6	1.0	SMA	Male	Straight	Standard	MCX	Male
086-12SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.3	1.0	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-12SMRC+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.22	1.0	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
086-12SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.24	1.0	SMA	Male	Straight	Standard	SMA	Male
086-13SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.0	1.08	SMA	Male	Straight	Standard	SMA	Male
086-14SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.03	1.17	SMA	Male	Straight	Standard	SMA	Female
086-14SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.13	1.17	SMA	Male	Straight	Standard	SMA	Male
086-14SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.49	1.17	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-14SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.36	1.17	SMA	Male	Straight	Standard	SMA	Male
086-15KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	2.2	1.25	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-15SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.19	1.25	SMA	Male	Straight	Standard	SMA	Male
086-15SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.43	1.25	SMA	Male	Straight	Standard	SMA	Male
086-16SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.1	1.33	SMA	Male	Straight	Standard	SMA	Female
086-16SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.33	1.33	SMA	Male	Straight	Standard	SMA	Male
086-16SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.5	1.33	SMA	Male	Straight	Standard	SMA	Male
086-18BM+	Jumper, Tin Soaked, 0.086", 3 GHz	3.0	0.39	1.5	BNC	Male	Straight	Standard	BNC	Male
086-18KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	2.4	1.5	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-18SBSMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.71	1.5	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Female
086-18SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.41	1.5	SMA	Male	Straight	Standard	SMA	Male
086-18SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.9	1.5	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-18SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.7	1.5	SMA	Male	Straight	Standard	SMA	Male
086-20SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.87	1.67	SMA	Male	Straight	Standard	SMA	Male
086-22SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	2.02	1.83	SMA	Male	Straight	Standard	SMA	Male
086-24BM+	Jumper, Tin Soaked, 0.086", 3 GHz	3.0	0.51	2.0	BNC	Male	Straight	Standard	BNC	Male
086-24KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	3.2	2.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-24SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	2.02	2.0	SMA	Male	Straight	Standard	SMA	Male
086-24SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.7	2.0	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-24SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	2.25	2.0	SMA	Male	Straight	Standard	SMA	Male
086-2SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.33	0.17	SMA	Male	Straight	Standard	SMA	Male
086-2SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.47	0.17	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-2SMRC+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.47	0.17	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
086-36SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	2.44	3.0	SMA	Male	Straight	Standard	SMA	Male
086-3KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	0.49	0.25	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-3SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.47	0.25	SMA	Male	Straight	Standard	SMA	Female
086-3SBSMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.36	0.25	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Female
086-3SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.31	0.25	SMA	Male	Straight	Standard	SMA	Male
086-3SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.39	0.25	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-3SMRC+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.45	0.25	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
086-3SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.38	0.25	SMA	Male	Straight	Standard	SMA	Male
086-4KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	0.6	0.33	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-4SBSMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.56	0.33	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Female
086-4SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.34	0.33	SMA	Male	Straight	Standard	SMA	Male
086-4SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.59	0.33	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-4SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.57	0.33	SMA	Male	Straight	Standard	SMA	Male
086-5SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.42	0.42	SMA	Male	Straight	Standard	SMA	Female
086-5SBSMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.71	0.42	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Female
086-5SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.41	0.42	SMA	Male	Straight	Standard	SMA	Male
086-5SMPR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.43	0.42	SMP	Female	Right Angle 0° Clocked	Standard	SMP	Female
086-5SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.66	0.42	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-5SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.57	0.42	SMA	Male	Straight	Standard	SMA	Male
086-6BM+	Jumper, Tin Soaked, 0.086", 3 GHz	3.0	0.14	0.5	BNC	Male	Straight	Standard	BNC	Male
086-6KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	0.89	0.5	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-6SBMMCR+	Jumper, Tin Soaked, 0.086", 18 GHz	6.0	0.3	0.5	MMCX	Male	Right Angle 0° Clocked	Standard	SMA	Female
086-6SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.47	0.5	SMA	Male	Straight	Standard	SMA	Female
086-6SBSMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.76	0.5	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Female
086-6SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.52	0.5	SMA	Male	Straight	Standard	SMA	Male
086-6SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.76	0.5	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-6SMRC+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.68	0.5	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
086-6SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.57	0.5	SMA	Male	Straight	Standard	SMA	Male
086-7SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.59	0.58	SMA	Male	Straight	Standard	SMA	Female
086-7SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.6	0.58	SMA	Male	Straight	Standard	SMA	Male
086-7SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.97	0.58	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-7SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.88	0.58	SMA	Male	Straight	Standard	SMA	Male
086-8BM+	Jumper, Tin Soaked, 0.086", 3 GHz	3.0	0.18	0.67	BNC	Male	Straight	Standard	BNC	Male
086-8SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.7	0.67	SMA	Male	Straight	Standard	SMA	Female
086-8SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.69	0.67	SMA	Male	Straight	Standard	SMA	Male
086-8SMPR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.9	0.67	SMP	Female	Right Angle 0° Clocked	Standard	SMP	Female
086-8SMPSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.63	0.67	SMA	Male	Straight	Standard	SMP	Female
086-8SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.93	0.67	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-8SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.92	0.67	SMA	Male	Straight	Standard	SMA	Male
086-9KM+	Jumper, Tin Soaked, 0.086", 40 GHz	40.0	1.4	0.75	2.92 mm	Male	Straight	Standard	2.92 mm	Male
086-9SBSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.72	0.75	SMA	Male	Straight	Standard	SMA	Female
086-9SM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	0.79	0.75	SMA	Male	Straight	Standard	SMA	Male
086-9SMR+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.01	0.75	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
086-9SMRC+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.0	0.75	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
086-9SMRSM+	Jumper, Tin Soaked, 0.086", 18 GHz	18.0	1.01	0.75	SMA	Male	Straight	Standard	SMA	Male
141-0.5MSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.86	1.64	SMA	Male	Straight	Standard	SMA	Male
141-1.5MSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	3.53	4.92	SMA	Male	Straight	Standard	SMA	Male
141-10BM+	Jumper, Tin Soaked, 0.141", 40 GHz	3.0	0.15	0.83	BNC	Male	Straight	Standard	BNC	Male
141-10NM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.53	0.83	N-Type	Male	Straight	Standard	N-Type	Male
141-10SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.59	0.83	SMA	Male	Straight	Standard	SMA	Male
141-10SMNB+	Jumper, Tin Soaked, 0.141", 18 GHz	12.5	0.4	0.83	N-Type	Female	Straight	Bulkhead	SMA	Male
141-10SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.69	0.83	N-Type	Male	Straight	Standard	SMA	Male
141-10SMRNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.5	0.83	N-Type	Male	Straight	Standard	SMA	Male
141-10SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.8	0.83	SMA	Male	Straight	Standard	SMA	Male
141-11SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.57	0.92	SMA	Male	Straight	Standard	SMA	Male
141-11SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.8	0.92	SMA	Male	Straight	Standard	SMA	Male
141-12BM+	Jumper, Tin Soaked, 0.141", 3 GHz	3.0	0.17	1.0	BNC	Male	Straight	Standard	BNC	Male
141-12NM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.69	1.0	N-Type	Male	Straight	Standard	N-Type	Male
141-12NM-300W+	Jumper, Tin Soaked, 0.141", 18 GHz	6.0	0.31	1.0	N-Type	Male	Straight	Standard	N-Type	Male
141-12SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.66	1.0	SMA	Male	Straight	Standard	SMA	Male
141-12SMNB+	Jumper, Tin Soaked, 0.141", 12.4 GHz	12.5	0.58	1.0	N-Type	Female	Straight	Bulkhead	SMA	Male
141-12SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.77	1.0	N-Type	Male	Straight	Standard	SMA	Male
141-12SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.76	1.0	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-12SMRC+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.72	1.0	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
141-12SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.8	1.0	SMA	Male	Straight	Standard	SMA	Male
141-13SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.5	1.08	SMA	Male	Straight	Standard	SMA	Male
141-13SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.92	1.08	SMA	Male	Straight	Standard	SMA	Male
141-14BM+	Jumper, Tin Soaked, 0.141", 3 GHz	3.0	0.2	1.17	BNC	Male	Straight	Standard	BNC	Male
141-14SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.73	1.17	SMA	Male	Straight	Standard	SMA	Male
141-14SMNB+	Jumper, Tin Soaked, 0.141", 18 GHz	12.5	0.64	1.17	N-Type	Female	Straight	Bulkhead	SMA	Male
141-14SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.03	1.17	SMA	Male	Straight	Standard	SMA	Male
141-15SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.85	1.25	SMA	Male	Straight	Standard	SMA	Male
141-15SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.0	1.25	SMA	Male	Straight	Standard	SMA	Male
141-16SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.9	1.33	SMA	Male	Straight	Standard	SMA	Male
141-16SMNB+	Jumper, Tin Soaked, 0.141", 12.4 GHz	12.5	0.76	1.33	N-Type	Female	Straight	Bulkhead	SMA	Male
141-16SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.04	1.33	SMA	Male	Straight	Standard	SMA	Male
141-17SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.96	1.42	SMA	Male	Straight	Standard	SMA	Male
141-17SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.11	1.42	SMA	Male	Straight	Standard	SMA	Male
141-18BM+	Jumper, Tin Soaked, 0.141", 3 GHz	3.0	0.25	1.5	BNC	Male	Straight	Standard	BNC	Male
141-18NM-300W+	Jumper, Tin Soaked, 0.141", 18 GHz	6.0	0.45	1.5	N-Type	Male	Straight	Standard	N-Type	Male
141-18SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.89	1.5	SMA	Male	Straight	Standard	SMA	Male
141-18SMNB+	Jumper, Tin Soaked, 0.141", 12.4 GHz	12.5	0.81	1.5	N-Type	Female	Straight	Bulkhead	SMA	Male
141-18SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.19	1.5	N-Type	Male	Straight	Standard	SMA	Male
141-18SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.93	1.5	SMA	Male	Straight	Standard	SMA	Male
141-19SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.86	1.58	SMA	Male	Straight	Standard	SMA	Male
141-1MSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.67	3.28	SMA	Male	Straight	Standard	SMA	Male
141-20SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.92	1.67	SMA	Male	Straight	Standard	SMA	Male
141-20SMNB+	Jumper, Tin Soaked, 0.141", 12.4 GHz	12.5	1.01	1.67	N-Type	Female	Straight	Bulkhead	SMA	Male
141-20SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.12	1.67	SMA	Male	Straight	Standard	SMA	Male
141-22SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.12	1.83	SMA	Male	Straight	Standard	SMA	Male
141-24BM+	Jumper, Tin Soaked, 0.141", 3 GHz	3.0	0.31	2.0	BNC	Male	Straight	Standard	BNC	Male
141-24NM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.21	2.0	N-Type	Male	Straight	Standard	N-Type	Male
141-24NM-300W+	Jumper, Tin Soaked, 0.141", 18 GHz	6.0	0.57	2.0	N-Type	Male	Straight	Standard	N-Type	Male
141-24SBSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.1	2.0	SMA	Male	Straight	Standard	SMA	Female
141-24SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.12	2.0	SMA	Male	Straight	Standard	SMA	Male
141-24SMNB+	Jumper, Tin Soaked, 0.141", 6 GHz	12.5	1.18	2.0	N-Type	Female	Straight	Bulkhead	SMA	Male
141-24SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.32	2.0	N-Type	Male	Straight	Standard	SMA	Male
141-24SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.55	2.0	SMA	Male	Straight	Standard	SMA	Male
141-26SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.2	2.17	SMA	Male	Straight	Standard	SMA	Male
141-2MSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	3.36	6.56	SMA	Male	Straight	Standard	SMA	Male
141-2SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.15	0.17	SMA	Male	Straight	Standard	SMA	Male
141-2SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.14	0.17	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-2SMRC+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.21	0.17	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
141-30NM-300W+	Jumper, Tin Soaked, 0.141", 18 GHz	6.0	0.70	2.5	N-Type	Male	Straight	Standard	N-Type	Male
141-30SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.27	2.5	SMA	Male	Straight	Standard	SMA	Male
141-32SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.3	2.67	SMA	Male	Straight	Standard	SMA	Male
141-36SBSMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.6	3.0	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Female
141-36SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.51	3.0	SMA	Male	Straight	Standard	SMA	Male
141-36SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	2.19	3.0	SMA	Male	Straight	Standard	SMA	Male
141-3NM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.42	0.25	N-Type	Male	Straight	Standard	N-Type	Male
141-3SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.21	0.25	SMA	Male	Straight	Standard	SMA	Male
141-3SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.2	0.25	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-3SMRC+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.2	0.25	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
141-3SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.28	0.25	SMA	Male	Straight	Standard	SMA	Male
141-40SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.9	3.33	SMA	Male	Straight	Standard	SMA	Male
141-4SBSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.21	0.33	SMA	Male	Straight	Standard	SMA	Female
141-4SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.2	0.33	SMA	Male	Straight	Standard	SMA	Male
141-4SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.49	0.33	N-Type	Male	Straight	Standard	SMA	Male
141-4SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.31	0.33	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-4SMRC+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.45	0.33	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
141-4SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.39	0.33	SMA	Male	Straight	Standard	SMA	Male
141-50SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	2.5	4.17	SMA	Male	Straight	Standard	SMA	Male
141-5SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.29	0.42	SMA	Male	Straight	Standard	SMA	Male
141-5SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.84	0.42	N-Type	Male	Straight	Standard	SMA	Male
141-5SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.4	0.42	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-5SMRC+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.56	0.42	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
141-5SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.31	0.42	SMA	Male	Straight	Standard	SMA	Male
141-60SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	2.5	5.0	SMA	Male	Straight	Standard	SMA	Male
141-6BM+	Jumper, Tin Soaked, 0.141", 3 GHz	3.0	0.1	0.5	BNC	Male	Straight	Standard	BNC	Male
141-6NM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.35	0.5	N-Type	Male	Straight	Standard	N-Type	Male
141-6SBSMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.28	0.5	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Female
141-6SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.39	0.5	SMA	Male	Straight	Standard	SMA	Male
141-6SMNB+	Jumper, Tin Soaked, 0.141", 12.4 GHz	12.5	0.32	0.5	N-Type	Female	Straight	Bulkhead	SMA	Male
141-6SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.67	0.5	N-Type	Male	Straight	Standard	SMA	Male
141-6SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.46	0.5	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-6SMRC+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.46	0.5	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
141-6SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.5	0.5	SMA	Male	Straight	Standard	SMA	Male
141-72SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	3.1	6.0	SMA	Male	Straight	Standard	SMA	Male
141-7SBSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.37	0.58	SMA	Male	Straight	Standard	SMA	Female
141-7SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.47	0.58	SMA	Male	Straight	Standard	SMA	Male
141-7SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.27	0.58	N-Type	Male	Straight	Standard	SMA	Male
141-7SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.45	0.58	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-7SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.72	0.58	SMA	Male	Straight	Standard	SMA	Male
141-8BM+	Jumper, Tin Soaked, 0.141", 3 GHz	3.0	0.12	0.67	BNC	Male	Straight	Standard	BNC	Male
141-8NM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	1.2	0.67	N-Type	Male	Straight	Standard	N-Type	Male
141-8SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.42	0.67	SMA	Male	Straight	Standard	SMA	Male
141-8SMNB+	Jumper, Tin Soaked, 0.141", 12.4 GHz	12.5	0.32	0.67	N-Type	Female	Straight	Bulkhead	SMA	Male
141-8SMNM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.86	0.67	N-Type	Male	Straight	Standard	SMA	Male
141-8SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.51	0.67	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-8SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.7	0.67	SMA	Male	Straight	Standard	SMA	Male
141-9SM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.55	0.75	SMA	Male	Straight	Standard	SMA	Male
141-9SMR+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.58	0.75	SMA	Male	Right Angle 0° Clocked	Standard	SMA	Male
141-9SMRC+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.72	0.75	SMA	Male	Right Angle 180° Clocked	Standard	SMA	Male
141-9SMRSM+	Jumper, Tin Soaked, 0.141", 18 GHz	18.0	0.72	0.75	SMA	Male	Straight	Standard	SMA	Male
APC-10FT-NMNM+	Test & Measurement, Armored, 18 GHz	18.0	6.3	10.0	N-Type	Male	Straight	Standard	N-Type	Male
APC-15FT-NMNM+	Test & Measurement, Armored, 18 GHz	18.0	9.0	15.0	N-Type	Male	Straight	Standard	N-Type	Male
APC-4FT-SMNM+	Test & Measurement, Armored, 18 GHz	18.0	2.55	4.0	N-Type	Male	Straight	Standard	SMA	Male
APC-6FT-NMNM+	Test & Measurement, Armored, 18 GHz	18.0	3.8	6.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-0.5M-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.2	1.64	N-Type	Male	Straight	Standard	N-Type	Male
CBL-0.5M-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.2	1.64	N-Type	Male	Straight	Standard	SMA	Male
CBL-0.5M-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.1	1.64	SMA	Male	Straight	Standard	SMA	Male
CBL-1.5FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.0	1.5	SMA	Male	Straight	Standard	SMA	Male
CBL-1.5M-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.4	4.92	N-Type	Male	Straight	Standard	N-Type	Male
CBL-1.5M-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.2	4.92	N-Type	Male	Straight	Standard	SMA	Male
CBL-1.5M-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.1	4.92	SMA	Male	Straight	Standard	SMA	Male
CBL-10FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	6.3	10.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-10FT-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	6.06	10.0	N-Type	Male	Straight	Standard	SMA	Male
CBL-10FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	6.1	10.0	SMA	Male	Straight	Standard	SMA	Male
CBL-12FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	7.3	12.0	SMA	Male	Straight	Standard	SMA	Male
CBL-15FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	9.2	15.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-15FT-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	9.2	15.0	N-Type	Male	Straight	Standard	SMA	Male
CBL-15FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	9.25	15.0	SMA	Male	Straight	Standard	SMA	Male
CBL-1FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	0.75	1.0	SMA	Male	Straight	Standard	SMA	Male
CBL-1M-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.3	3.28	N-Type	Male	Straight	Standard	N-Type	Male
CBL-1M-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.2	3.28	N-Type	Male	Straight	Standard	SMA	Male
CBL-1M-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.0	3.28	SMA	Male	Straight	Standard	SMA	Male
CBL-20FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	12.0	20.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-20FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	12.5	20.0	SMA	Male	Straight	Standard	SMA	Male
CBL-25FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	15.0	25.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-25FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	15.0	25.0	SMA	Male	Straight	Standard	SMA	Male
CBL-2FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.4	2.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-2FT-SFNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.4	2.0	N-Type	Male	Straight	Standard	SMA	Female
CBL-2FT-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.4	2.0	N-Type	Male	Straight	Standard	SMA	Male
CBL-2FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.4	2.0	SMA	Male	Straight	Standard	SMA	Male
CBL-2M-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	4.0	6.56	N-Type	Male	Straight	Standard	N-Type	Male
CBL-2M-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	4.2	6.56	N-Type	Male	Straight	Standard	SMA	Male
CBL-2M-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	4.0	6.56	SMA	Male	Straight	Standard	SMA	Male
CBL-3FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.9	3.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-3FT-SFNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.9	3.0	N-Type	Male	Straight	Standard	SMA	Female
CBL-3FT-SFSM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.9	3.0	SMA	Male	Straight	Standard	SMA	Female
CBL-3FT-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.9	3.0	N-Type	Male	Straight	Standard	SMA	Male
CBL-3FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.9	3.0	SMA	Male	Straight	Standard	SMA	Male
CBL-4FT-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.55	4.0	N-Type	Male	Straight	Standard	SMA	Male
CBL-4FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.55	4.0	SMA	Male	Straight	Standard	SMA	Male
CBL-50FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	31.0	50.0	SMA	Male	Straight	Standard	SMA	Male
CBL-5FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.5	5.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-5FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.4	5.0	SMA	Male	Straight	Standard	SMA	Male
CBL-6FT-NMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.8	6.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL-6FT-SFNM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.8	6.0	N-Type	Male	Straight	Standard	SMA	Female
CBL-6FT-SMNM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.8	6.0	N-Type	Male	Straight	Standard	SMA	Male
CBL-6FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.8	6.0	SMA	Male	Straight	Standard	SMA	Male
CBL1.5SMQ-SM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.0	1.5	SMA	Male	Straight	Standard	SMA	Male
CBL10SMQ-SM+	Test & Measurement, Unarmored, 18 GHz	18.0	6.1	10.0	SMA	Male	Straight	Standard	SMA	Male
CBL2SMQ-SM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.4	2.0	SMA	Male	Straight	Standard	SMA	Male
CBL3NMQ-NM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.0	3.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL3NMQ-SM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.9	3.0	SMA	Male	Straight	Standard	N-Type	Male
CBL3SMQ-SM+	Test & Measurement, Unarmored, 18 GHz	18.0	1.9	3.0	SMA	Male	Straight	Standard	SMA	Male
CBL6NMQ-NM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.8	6.0	N-Type	Male	Straight	Standard	N-Type	Male
CBL6NMQ-SM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.8	6.0	SMA	Male	Straight	Standard	N-Type	Male
CBL6SMQ-SM+	Test & Measurement, Unarmored, 18 GHz	18.0	3.8	6.0	SMA	Male	Straight	Standard	SMA	Male
CBN-1.5FT-SMSM+	Test & Measurement, Phase Stable	26.5	1.0	1.5	SMA	Male	Straight	Standard	SMA	Male
CBN-1.5M-SMSM+	Test & Measurement, Phase Stable	26.5	3.2	3.3	SMA	Male	Straight	Standard	SMA	Male
CBN-10FT-SMSM+	Test & Measurement, Phase Stable	26.5	6.3	10.0	SMA	Male	Straight	Standard	SMA	Male
CBN-15FT-SMSM+	Test & Measurement, Phase Stable	26.5	9.4	15.0	SMA	Male	Straight	Standard	SMA	Male
<CBN-1FT-SMSM+	Test & Measurement, Phase Stable	26.5	0.8	1.0	SMA	Male	Straight	Standard	SMA	Male
CBN-2FT-SMSM+	Test & Measurement, Phase Stable	26.5	1.4	2.0	SMA	Male	Straight	Standard	SMA	Male
CBN-3.5FT-SMSM+	Test & Measurement, Phase Stable	26.5	2.3	3.5	SMA	Male	Straight	Standard	SMA	Male
CBN-3FT-SMSM+	Test & Measurement, Phase Stable	26.5	2.1	3.0	SMA	Male	Straight	Standard	SMA	Male
CBN-4FT-SMSM+	Test & Measurement, Phase Stable	26.5	2.5	4.0	SMA	Male	Straight	Standard	SMA	Male
CBN-5FT-SMSM+	Test & Measurement, Phase Stable	26.5	3.5	5.0	SMA	Male	Straight	Standard	SMA	Male
CBN-6FT-SMSM+	Test & Measurement, Phase Stable	26.5	3.8	6.0	SMA	Male	Straight	Standard	SMA	Male
E40-1M-KMKM+	Test & Measurement, Unarmored, 40 GHz	40.0	5.4	3.28	2.92 mm	Male	Straight	Standard	2.92 mm	Male
E40-2FT-KMKM+	Test & Measurement, Unarmored, 40 GHz	40.0	3.4	2.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
E40-3FT-KMKM+	Test & Measurement, Unarmored, 40 GHz	40.0	5.1	3.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
E40-6FT-KMKM+	Test & Measurement, Unarmored, 40 GHz	40.0	8.7	6.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
E50-2FT-VMVM+	Test & Measurement, Unarmored, 50 GHz	50.0	3.5	2.0	2.4 mm	Male	Straight	Standard	2.4 mm	Male
E50-3FT-VMVM+	Test & Measurement, Unarmored, 50 GHz	50.0	6.3	3.0	2.4 mm	Male	Straight	Standard	2.4 mm	Male
E67-1M-EMEM+	Test & Measurement, Unarmored, 67 GHz	67.0	5.5	3.28	1.85 mm	Male	Straight	Standard	1.85 mm	Male
E67-2FT-EMEM+	Test & Measurement, Unarmored, 67 GHz	67.0	2.7	2.0	1.85 mm	Male	Straight	Standard	1.85 mm	Male
E67-3FT-EMEM+	Test & Measurement, Unarmored, 67 GHz	67.0	4.2	3.0	1.85 mm	Male	Straight	Standard	1.85 mm	Male
FL086-12-35M+	Jumper, Braided Flexible 0.086", 26.5 GHz	26.5	1.2	1.0	3.5mm	Male	Straight	Standard	3.5mm	Male
FL086-12KM+	Jumper, Braided Flexible 0.086", 40 GHz	40.0	1.5	1.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
FL086-12NM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	0.6	1.0	N-Type	Male	Straight	Standard	N-Type	Male
FL086-12SM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	0.9	1.0	SMA	Male	Straight	Standard	SMA	Male
FL086-12SMMCR+	Jumper, Braided Flexible 0.086", 6 GHz	6.0	0.7	1.0	SMA	Male	Straight	Standard	MCX	Male
FL086-12SMNM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	0.7	1.0	N-Type	Male	Straight	Standard	SMA	Male
FL086-24NM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	1.4	2.0	N-Type	Male	Straight	Standard	N-Type	Male
FL086-24SM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	1.5	2.0	SMA	Male	Straight	Standard	SMA	Male
FL086-24SMNM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	1.4	2.0	N-Type	Male	Straight	Standard	SMA	Male
FL086-3KM+	Jumper, Braided Flexible 0.086", 40 GHz	40.0	0.5	0.25	2.92 mm	Male	Straight	Standard	2.92 mm	Male
FL086-4KM+	Jumper, Braided Flexible 0.086", 18 GHz	40.0	0.6	0.33	2.92 mm	Male	Straight	Standard	2.92 mm	Male
FL086-6-35M+	Jumper, Braided Flexible 0.086", 26.5 GHz	26.5	0.6	0.5	3.5mm	Male	Straight	Standard	3.5mm	Male
FL086-6KM+	Jumper, Braided Flexible 0.086", 40 GHz	40.0	0.8	0.5	2.92 mm	Male	Straight	Standard	2.92 mm	Male
FL086-6NM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	0.3	0.5	N-Type	Male	Straight	Standard	N-Type	Male
FL086-6SM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	0.4	0.5	SMA	Male	Straight	Standard	SMA	Male
FL086-6SMNM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	0.3	0.5	N-Type	Male	Straight	Standard	SMA	Male
FL086-9SM+	Jumper, Braided Flexible 0.086", 18 GHz	18.0	0.64	0.75	SMA	Male	Straight	Standard	SMA	Male
FL141-12NM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.4	1.0	N-Type	Male	Straight	Standard	N-Type	Male
FL141-12SM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.5	1.0	SMA	Male	Straight	Standard	SMA	Male
FL141-12SMNM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.4	1.0	N-Type	Male	Straight	Standard	SMA	Male
FL141-24NM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.9	2.0	N-Type	Male	Straight	Standard	N-Type	Male
FL141-24SM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	1.0	2.0	SMA	Male	Straight	Standard	SMA	Male
FL141-24SMNM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.9	2.0	N-Type	Male	Straight	Standard	SMA	Male
FL141-6NM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.2	0.5	N-Type	Male	Straight	Standard	N-Type	Male
FL141-6SM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.3	0.5	SMA	Male	Straight	Standard	SMA	Male
FL141-6SMNM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.2	0.5	N-Type	Male	Straight	Standard	SMA	Male
FL141-9SM+	Jumper, Braided Flexible, 0.141", 18 GHz	18.0	0.37	0.75	SMA	Male	Straight	Standard	SMA	Male
FL47-12KM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.7	1.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
FL47-12KMVM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.8	1.0	2.92 mm	Male	Straight	Standard	2.4 mm	Male
FL47-12SSMP+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.7	1.0	SMPM	Female	Straight	Standard	SMPM	Female
FL47-12SSMPKM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.7	1.0	SMPM	Female	Straight	Standard	2.92 mm	Male
FL47-12SSMPVM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.8	1.0	SMPM	Female	Straight	Standard	2.4 mm	Male
FL47-12VM+	Jumper, Braided Flexible, 0.047", 40 GHz	50.0	3.2	1.0	2.4 mm	Male	Straight	Standard	2.4 mm	Male
FL47-6KM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.1	0.5	2.92 mm	Male	Straight	Standard	2.92 mm	Male
FL47-6KMVM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	1.2	0.5	2.92 mm	Male	Straight	Standard	2.4 mm	Male
FL47-6SSMP+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.5	0.5	SMPM	Female	Straight	Standard	SMPM	Female
FL47-6SSMPKM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.36	0.5	SMPM	Female	Straight	Standard	2.92 mm	Male
FL47-6SSMPVM+	Jumper, Braided Flexible, 0.047", 40 GHz	40.0	2.36	0.5	SMPM	Female	Straight	Standard	2.4 mm	Male
FL47-6VM+	Jumper, Braided Flexible, 0.047", 40 GHz	50.0	2.36	0.5	2.4 mm	Male	Straight	Standard	2.4 mm	Male
FL86-12KMVM+	Jumper, Braided Flexible, 0.086", 40 GHz	40.0	1.6	1.0	2.92 mm	Male	Straight	Standard	2.4 mm	Male
FL86-12SMP+	Jumper, Braided Flexible, 0.086", 40 GHz	26.5	1.45	1.0	SMP	Female	Straight	Standard	SMP	Female
FL86-12SMPKM+	Jumper, Braided Flexible, 0.086", 40 GHz	33.0	1.46	1.0	SMP	Female	Straight	Standard	2.92 mm	Male
FL86-12SMPVM+	Jumper, Braided Flexible, 0.086", 33 GHz	33.0	1.45	1.0	SMP	Female	Straight	Standard	2.4 mm	Male
FL86-12SSMP+	Jumper, Braided Flexible, 0.086", 40 GHz	40.0	1.86	1.0	SMPM	Female	Straight	Standard	SMPM	Female
FL86-12SSMPKM+	Jumper, Braided Flexible, 0.086", 40 GHz	40.0	1.79	1.0	SMPM	Female	Straight	Standard	2.92 mm	Male
FL86-12SSMPSMP+	Jumper, Braided Flexible, 0.086", 40 GHz	33.0	1.45	1.0	SMPM	Female	Straight	Standard	SMP	Female
FL86-12SSMPVM+	Jumper, Braided Flexible, 0.086", 40 GHz	40.0	1.81	1.0	SMPM	Female	Straight	Standard	2.4 mm	Male
FL86-12VM+	Jumper, Braided Flexible, 0.086", 50 GHz	50.0	1.96	1.0	2.4 mm	Male	Straight	Standard	2.4 mm	Male
FLC-1.5FT-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	1.26	1.5	SMA	Male	Straight	Standard	SMA	Male
FLC-1FT-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	1.1	1.0	SMA	Male	Straight	Standard	SMA	Male
FLC-1M-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	2.62	3.28	SMA	Male	Straight	Standard	SMA	Male
FLC-2FT-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	1.61	2.0	SMA	Male	Straight	Standard	SMA	Male
FLC-2M-SMNM+	Test & Measurement, Unarmored, 26.5 GHz	18.0	4.03	6.56	N-Type	Male	Straight	Standard	SMA	Male
FLC-2M-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	5.5	6.56	SMA	Male	Straight	Standard	SMA	Male
FLC-3FT-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	2.5	3.0	SMA	Male	Straight	Standard	SMA	Male
FLC-4FT-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	3.55	4.0	SMA	Male	Straight	Standard	SMA	Male
FLC-6FT-SMSM+	Test & Measurement, Unarmored, 26.5 GHz	26.0	5.04	6.0	SMA	Male	Straight	Standard	SMA	Male
K086-12SMMCX1+	Jumper, Tin Soaked, 0.086", 6 GHz	6.0	0.34	1.0	MCX	Male	Straight	Standard	SMA	Male
K086-8SMMCX1+	Jumper, Tin Soaked, 0.086", 6 GHz	6.0	0.25	0.67	MCX	Male	Straight	Standard	SMA	Male
KBL-1.5FT-LOW+	Test & Measurement, Armored, 40 GHz	40.0	1.41	1.5	2.92 mm	Male	Straight	Standard	2.92 mm	Male
KBL-1M-LOW+	Test & Measurement, Armored, 40 GHz	40.0	3.05	3.28	2.92 mm	Male	Straight	Standard	2.92 mm	Male
KBL-2FT-LOW+	Test & Measurement, Armored, 40 GHz	40.0	1.74	2.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
KBL-2M-LOW+	Test & Measurement, Armored, 40 GHz	40.0	5.46	6.56	2.92 mm	Male	Straight	Standard	2.92 mm	Male
KBL-4FT-LOW+	Test & Measurement, Armored, 40 GHz	40.0	3.41	4.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
SLC-1M-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	4.9	3.28	SMA	Male	Straight	Standard	SMA	Male
SLC-2FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	2.9	2.0	SMA	Male	Straight	Standard	SMA	Male
SLC-3FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	4.4	3.0	SMA	Male	Straight	Standard	SMA	Male
SLC-4FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	6.0	4.0	SMA	Male	Straight	Standard	SMA	Male
SLC-6FT-SMSM+	Test & Measurement, Unarmored, 18 GHz	18.0	8.8	6.0	SMA	Male	Straight	Standard	SMA	Male
T40-2FT-KFKM+	Test & Measurement, Unarmored, 40 GHz	40.0	2.2	2.0	2.92 mm	Male	Straight	Standard	2.92 mm	Female
T40-2FT-KMKM+	Test & Measurement, Unarmored, 40 GHz	40.0	2.2	2.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
T40-2FT-VFVM+	Test & Measurement, Unarmored, 40 GHz	40.0	2.2	2.0	2.4 mm	Male	Straight	Standard	2.4 mm	Female
T40-3FT-KFKM+	Test & Measurement, Unarmored, 40 GHz	40.0	3.3	3.0	2.92 mm	Male	Straight	Standard	2.92 mm	Female
T40-3FT-KMKM+	Test & Measurement, Unarmored, 40 GHz	40.0	3.3	3.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
T40-3FT-VFVM+	Test & Measurement, Unarmored, 40 GHz	40.0	3.3	3.0	2.4 mm	Male	Straight	Standard	2.4 mm	Female
	Test & Measurement, Unarmored, 50 GHz	50.0	2.2	2.0	2.4 mm	Male	Straight	Standard	2.4 mm	Female
T50-2FT-VMVM+	Test & Measurement, Unarmored, 50 GHz	50.0	2.7	2.0	2.4 mm	Male	Straight	Standard	2.4 mm	Male
T50-3FT-VFVM+	Test & Measurement, Unarmored, 50 GHz	50.0	3.7	3.0	2.4 mm	Male	Straight	Standard	2.4 mm	Female
TMP40-1M-KMKM+	Test & Measurement, Unarmored, Over-Temperature, 40 GHz	40.0	2.6	3.28	2.92 mm	Male	Straight	Standard	2.92 mm	Male
TMP40-3FT-KMKM+	Test & Measurement, Unarmored, Over-Temperature, 40 GHz	40.0	2.4	3.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
TMP40-6FT-KMKM+	Test & Measurement, Unarmored, Over-Temperature, 40 GHz	40.0	4.6	6.0	2.92 mm	Male	Straight	Standard	2.92 mm	Male
ULC-1.5FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	1.4	1.5	SMA	Male	Straight	Standard	SMA	Male
ULC-10FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	7.5	10.0	SMA	Male	Straight	Standard	SMA	Male
ULC-1FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	0.7	1.0	SMA	Male	Straight	Standard	SMA	Male
ULC-1M-NMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	2.6	3.28	N-Type	Male	Straight	Standard	N-Type	Male
ULC-1M-SMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	2.5	3.28	N-Type	Male	Straight	Standard	SMA	Male
ULC-1M-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	2.8	3.28	SMA	Male	Straight	Standard	SMA	Male
ULC-2FT-NMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	1.6	2.0	N-Type	Male	Straight	Standard	N-Type	Male
ULC-2FT-SMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	1.5	2.0	N-Type	Male	Straight	Standard	SMA	Male
ULC-2FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	1.8	2.0	SMA	Male	Straight	Standard	SMA	Male
ULC-2M-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	5.9	6.56	SMA	Male	Straight	Standard	SMA	Male
ULC-3FT-NMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	2.2	3.0	N-Type	Male	Straight	Standard	N-Type	Male
ULC-3FT-SMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	2.2	3.0	N-Type	Male	Straight	Standard	SMA	Male
ULC-3FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	2.7	3.0	SMA	Male	Straight	Standard	SMA	Male
ULC-4FT-NMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	4.0	4.0	N-Type	Male	Straight	Standard	N-Type	Male
ULC-4FT-SMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	3.1	4.0	N-Type	Male	Straight	Standard	SMA	Male
ULC-4FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	3.4	4.0	SMA	Male	Straight	Standard	SMA	Male
ULC-6FT-NMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	4.6	6.0	N-Type	Male	Straight	Standard	N-Type	Male
ULC-6FT-SMNM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	4.4	6.0	N-Type	Male	Straight	Standard	SMA	Male
ULC-6FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	5.2	6.0	SMA	Male	Straight	Standard	SMA	Male
ULC-8FT-SMSM+	Test & Measurement, Unarmored, Over-Temperature, 18 GHz	18.0	5.4	8.0	SMA	Male	Straight	Standard	SMA	Male
VNAC-2R1-K+	Test & Measurement, Test Port, 40 GHz	40.0	2.3	2.08	2.92 mm	Female	Straight	Rugged	2.92 mm	Male
VNAX-1M-EMERF+	Test & Measurement, Test Port, 67 GHz	67.0	5.79	3.28	1.85 mm	Female	Straight	Rugged	1.85 mm	Male
VNAX-2FT-EMERF+	Test & Measurement, Test Port, 67 GHz	67.0	3.7	2.0	1.85 mm	Female	Straight	Rugged	1.85 mm	Male
VNAX-2FT-KMVRF+	Test & Measurement, Test Port, 67 GHz	40.0	2.0	2.0	2.4 mm	Female	Straight	Rugged	2.92 mm	Male
VNAX-2FT-VMVRF+	Test & Measurement, Test Port, 67 GHz	50.0	2.4	2.0	2.4 mm	Female	Straight	Rugged	2.4 mm	Male
VNAX-3FT-EMERF+	Test & Measurement, Test Port, 67 GHz	67.0	5.36	3.0	1.85 mm	Female	Straight	Rugged	1.85 mm	Male
WBL-0.5FT-W1F+	Armored Test Cable	110.0	2.5	0.5	1.0mm	Female	Straight	Standard	1.0mm	Female
WBL-0.5FT-W1M+	Armored Test Cable	110.0	2.5	0.5	1.0mm	Male	Straight	Standard	1.0mm	Male
WBL-0.5FTW1F1M+	Armored Test Cable	110.0	2.5	0.5	1.0mm	Female	Straight	Standard	1.0mm	Male
WBL-1FT-W1F+	Armored Test Cable	110.0	4.5	1.0	1.0mm	Female	Straight	Standard	1.0mm	Female
WBL-1FT-W1F1M+	Armored Test Cable	110.0	4.5	1.0	1.0mm	Female	Straight	Standard	1.0mm	Male
WBL-1FT-W1M+	Armored Test Cable	110.0	4.5	1.0	1.0mm	Male	Straight	Standard	1.0mm	Male
