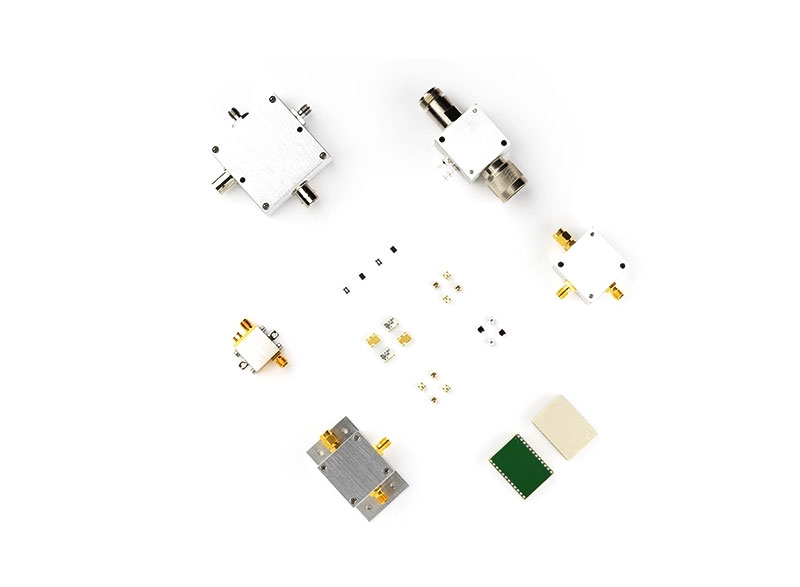

Bias Tees

Bias Tees

型号
50-Ohm and 75-Ohm models
规格
SMA, N-Type, and BNC
品牌
Mini-Circuits
13918167735

在线咨询
  • 产品参数
  • 说明书下载

Surface Mount, Wideband, 100 kHz to 40 GHz

Model Number Case Style F Low (MHz) F High (MHz) Insertion Loss (dB) Typ. Input Current (mA) Max. DC port Isolation (dB) Typ. VSWR (:1) Typ. PCB Layout Drawing
JEBT-4R2G+ BL301

10.0 4200.0 0.6 500.0 40.0 1.1 PL-216
JEBT-4R2GW+ BL301

0.1 4200.0 0.6 500.0 40.0 1.1 PL-216
MBT-44+ JV3002

10000.0 40000.0 1.0 500.0 46.0 1.16 PL-717
MBT-283+ JV2579

1500.0 28000.0 0.7 500.0 47.0 1.22 PL-692
RCBT-63+ TT1224-2

10.0 6000.0 1.0 500.0 20.0 1.25 PL-577
RCBT-63H+ TT1224-2

900.0 6000.0 0.3 2500.0 20.0 1.3 PL-577
TCBT-2R5G+ GU1604

20.0 2500.0 0.35 200.0 44.0 1.05 PL-146
TCBT-6G+ GU1604

50.0 6000.0 0.7 200.0 28.0 1.1 PL-146
TCBT-14+ GU1414

10.0 10000.0 0.35 200.0 33.0 1.2 PL-321
TCBT-14R+ GU1414-2

10.0 10000.0 0.6 200.0 33.0 1.2 PL-146
TCBT-123+ GU1414

10.0 12000.0 0.3 200.0 33.0 1.2 PL-481
TCBT-203+ GU1414-4

10.0 20000.0 0.4 250.0 33.0 1.2 PL-715

Surface Mount, Diplexers

Model Number Case Style Common Port (MHz) Output Port Freq. (MHz) Insertion Loss/Isolation (dB, typ.) COM-LP Insertion Loss/Isolation (dB, typ.) COM-HP VSWR (:1, typ.) COM VSWR (:1, typ.) LP
LDPG-272-492+ GE0805C-10

DC-2700, 4900-5750 DC-2700 0.5 30.0 1.38 1.38
LDPG-272-492+ GE0805C-10

DC-2700, 4900-5750 4900-5750 23.0 0.7 1.5 -
LDPW-162-242+ JC0603C

DC-1650, 2400-6000 DC-1650 0.6 20.0 1.22 1.22
LDPW-162-242+ JC0603C

DC-1650, 2400-6000 2400-2500 15.0 0.6 1.15 -
LDPW-162-242+ JC0603C

DC-1650, 2400-6000 4900-6000 15.0 0.3 1.38 -
RDP-2R15+ CK605

DC-20, 950-2150 DC-20 0.5 86.0 1.22 1.28
RDP-2R15+ CK605

DC-20, 950-2150 950-2150 58.0 0.5 1.22 -
RDP-272+ CK605

DC-950, 1700-2700 DC-950 0.7 35.0 1.22 1.28
RDP-272+ CK605

DC-950, 1700-2700 1700-2700 48.0 0.7 1.32 -
SDP-2R15+ HU1186

DC-800, 1500-2150 DC-800 0.4 46.0 1.25 1.25
SDP-2R15+ HU1186

DC-800, 1500-2150 1500-2150 46.0 0.5 1.25 1.22

Coaxial, Wideband, 100 kHz to 54 GHz

Model Number Case Style F Low (MHz) F High (MHz) Input Current (mA) Max. Insertion Loss (dB) Typ. DC port Isolation (dB) Typ. VSWR (:1) Typ.
Z3BT-2R15G+ CC1553

5 2600 7000 0.9 35 1.3
ZABT-80W-13-S+ AW1564

20 1000 5000 0.6 50 1.2
ZABT-250W-63+ VY3240-1

420 6000 4500 0.1 45 1.2
ZABT-250W-63X+ VY3240-1

420 6000 4500 0.1 45 1.2
ZABT-2150-5AFT+ JU1387

10 2150 5000 0.4 - 1.4
ZBT-K44-FT+ Y3206-1

10 40000 250 1 35 1.4
ZBT-K283+ VL3239

1500 28000 500 2 47 1.43
ZBT-K353-FT+ Y3206-1

10 35000 400 1 35 1.4
ZBT-V543-FT+ Y3206-1

10 54000 250 1.2 40 1.4
ZFBT-4R2G+ K18

10 4200 500 0.6 40 1.13
ZFBT-4R2G-FT+ Y460

10 4200 500 0.6 - 1.13
ZFBT-4R2GW+ K18

0.1 4200 500 0.6 40 1.13
ZFBT-4R2GW-FT+ Y460

0.1 4200 500 0.6 - 1.13
ZFBT-6G+ K18

10 6000 500 0.6 40 1.13
ZFBT-6G-FT+ Y460

10 6000 500 0.6 - 1.13
ZFBT-6GW+ K18

0.1 6000 500 0.6 40 1.13
ZFBT-6GW-FT+ Y460

0.1 6000 500 0.6 - 1.13
ZFBT-33-75-FT+ K1486

10 3000 200 0.15 - 1.13
ZFBT-33W-75-FT+ K1486

1 3000 200 0.5 - 1.18
ZFBT-282-1.5A+ V1381

10 2800 1500 0.6 45 1.10
ZFBT-352-FT+ Y460

300 3500 4000 0.5 23 1.10
ZNBT-60-1W+ K558

2.5 6000 500 0.6 45 1.10
ZX85-12G-S+ GC957

0.2 12000 400 0.6 - 1.20
ZX85-40W-63-S+ GC957

1000 6000 1000 0.5 - 1.40

Coaxial, Diplexer, 10 MHz to 5.9 GHz

Model Number Case Style Common Port (MHz) Output Port Freq. (MHz) IL/ISO (dB, Typ.) COM-LP IL/ISO (dB, Typ.) COM-HP VSWR (:1, typ.) COM VSWR (:1, typ.) LP VSWR (:1, typ.) HP
Z4BT-2R15G+ CC1823

10, 950-2150 10 0.5 65 - 1.4 -
Z4BT-2R15G+ CC1823

10, 950-2150 950-2150 90 0.4 - - 1.2
Z4BT-2R15GW+ CC1823

10-100, 950-2150 10-100 0.5 - 1.2 1.2 -
Z4BT-2R15GW+ CC1823

10-100, 950-2150 950-2150 - 0.7 1.28 - 1.28
ZABT-2R15G+ CC51

10, 950-2150 10 0.5 65 - 1.4 -
ZABT-2R15G+ CC51

10, 950-2150 950-2150 90 0.4 - - 1.2
ZDPLX-592-S+ K18

2400-2500, 5100-5900 5100-5900 45 0.9 1.67 - 1.67
ZDPLX-592-S+ K18

2400-2500, 5100-5900 2400-2500 0.8 40 1.37 1.37 -
ZDPLX-2150-S+ FL905

DC-10, 50-2150 50-2150 44 0.9 1.22 - 1.37
ZDPLX-2150-S+ FL905

DC-10, 50-2150 DC-10 0.5 61 1.15 1.07 -
ZX75-2R15-S+ FL905

DC-20, 950-2150 DC-20 0.4 91 1.1 1.1 -
ZX75-2R15-S+ FL905

DC-20, 950-2150 950-2150 49 0.5 1.13 - 1.1
ZX75-23-S+ FL905

9.8-10.2, 650-2000 650-2000 52 0.5 1.28 - 1.28
ZX75-23-S+ FL905

9.8-10.2, 650-2000 9.8-10.2 0.5 90 1.28 1.28 -

Plug-In, Wideband, 100 kHz to 3 GHz

Model Number Case Style F Low (MHz) F High (MHz) Input Current (mA) Max. Insertion Loss (dB) Typ. DC port Isolation (dB) Typ. VSWR (:1) Typ.
PBTC-1GW+ C07

0.1 1000.0 500.0 0.3 33.0 1.06
PBTC-3GW+ C07
1
 		0.1 3000.0 500.0 0.3 30.0 1.13

MMIC, Bias-Tee Die, Wideband,1.5 GHz to 40 GHz

Model Number F Low (MHz) F High (MHz) Insertion Loss (dB) Typ. Input Current (mA) Max. DC port Isolation (dB) Typ. VSWR (:1) Typ.
MBT-44-D+ 10000.0 40000.0 1 500.0 46.0 1.16
MBT-283-D+ 1500.0 20000.0 0.7 500.0 47.0 1.22
