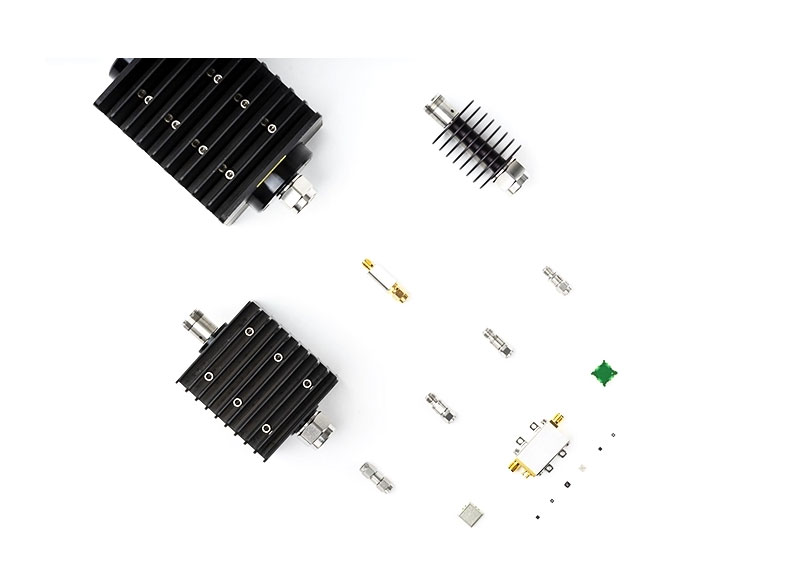

Attenuators

13918167735

Model Number	F Low (MHz)	F High (MHz)	Attenuation(dB) Typ.	VSWR (:1) Typ.	Input Power(W) Max	Connector Type	Case Style
BAT-0+	DC	60000	0	1.22	2	-	KC3009
BAT-2+	DC	60000	2	1.15	2	-	KC3009
BAT-3+	DC	60000	3	1.17	2	-	KC3009
BAT-5+	DC	60000	5	1.15	1.5	-	KC3009
BAT-6+	DC	60000	6	1.10	1.3	-	KC3009
BAT-7+	DC	60000	7	1.17	1.5	-	KC3009
BAT-8+	DC	60000	8	1.13	2	-	KC3009
BAT-9+	DC	60000	9	1.15	1.9	-	KC3009
BAT-10+	DC	60000	10	1.17	2	-	KC3009
BAT-12+	DC	60000	12	1.13	1.4	-	KC3009
BAT-15+	DC	60000	15	1.22	1.4	-	KC3009
BAT-30+	DC	60000	30	1.20	0.9	-	KC3009
BW-20N100W+	DC	6000	20	1.45	100	N	GH986
BW-30N100W+	DC	6000	30	1.45	100	N	GH986
BW-40N100W+	DC	4000	40	1.4	100	N	GH986
BW-E1-1W653+	DC	65000	1	1.65	1	1.85 mm	DJ2591
BW-E2-1W653+	DC	65000	2	1.13	1	1.85 mm	DJ2591
BW-E3-1W653+	DC	65000	3	1.65	1	1.85 mm	DJ2591
BW-E6-1W653+	DC	65000	6	1.65	1	1.85 mm	DJ2591
BW-E10-1W653+	DC	65000	10	1.65	1	1.85 mm	DJ2591
BW-E20-1W653+	DC	65000	20	1.65	1	1.85 mm	DJ2591
BW-E30-1W653+	DC	65000	30	1.65	1	1.85 mm	DJ2591
BW-K1-2W44+	DC	40000	1	1.5	2	2.92 mm	FF1653
BW-K2-2W44+	DC	40000	2	1.5	2	2.92 mm	FF1653
BW-K3-2W44+	DC	40000	3	1.5	2	2.92 mm	FF1653
BW-K4-2W44+	DC	40000	4	1.5	2	2.92 mm	FF1653
BW-K5-2W44+	DC	40000	5	1.5	2	2.92 mm	FF1653
BW-K6-2W44+	DC	40000	6	1.5	2	2.92 mm	FF1653
BW-K10-2W44+	DC	40000	10	1.5	2	2.92 mm	FF1653
BW-K20-2W44+	DC	40000	20	1.5	2	2.92 mm	FF1653
