Adapters

Adapters

型号

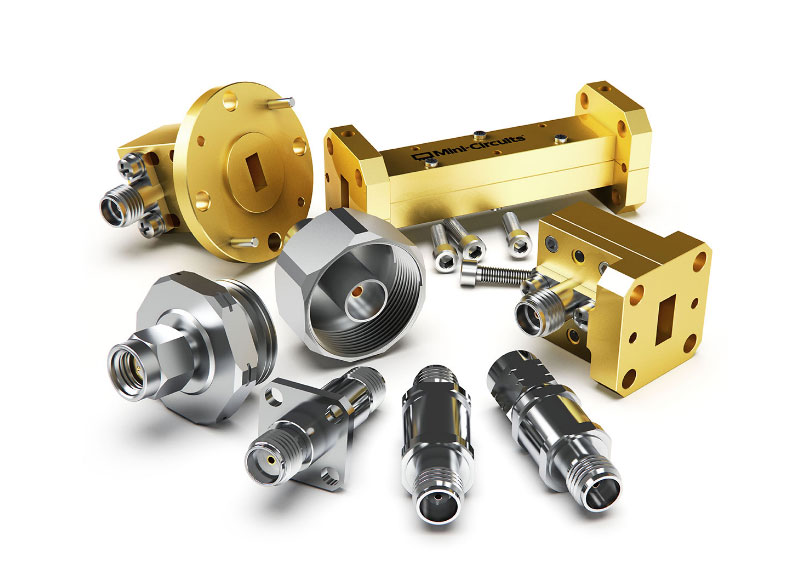

RF & Microwave Adapters
规格
Frequency Range as wide as DC to 110 GHz
品牌
Mini-Circuits
13918167735

在线咨询
  • 产品参数
  • 说明书下载
Model Number Case Style Conn. 1 Conn. 2 F Low(GHz) F High(GHz) VSWR(:1)Typ. Impedance (Ω)
10F-10F+ DJ3474 1.0mm 1.0mm DC 110 1.07 50
10F-10M+ DJ3474-1 1.0mm 1.0mm DC 110 1.10 50
10F-135F+ DJ3602-3 1.0mm 1.35mm DC 90 1.08 50
10F-135M+ DJ3602-4 1.0mm 1.35mm DC 90 1.06 50
10F-185F+ DJ3474-3 1.0mm 1.85mm DC 67 1.10 50
10F-185M+ DJ3474-4 1.0mm 1.85mm DC 67 1.09 50
10M-10M+ DJ3474-2 1.0mm 1.0mm DC 110 1.06 50
10M-135F+ DJ3602-5 1.0mm 1.35mm DC 90 1.07 50
10M-135M+        DJ3602-6 1.0mm 1.35mm DC 90 1.07 50
10M-185F+ DJ3474-5 1.0mm 1.85mm DC 67 1.08 50
10M-185M+ DJ3474-3 1.0mm 1.85mm DC 67 1.06 50
24B-KB+ DJ3049 2.92mm 2.4mm DC 40 1.05 50
24F-24F+ DJ2477             2.4mm 2.4mm DC 50 1.03 50
24F-24M+ DJ2478 2.4mm 2.4mm DC 50 1.06 50
24M-24M+ DJ2479 2.4mm 2.4mm DC 50 1.04 50
24M-24M-T+ DJ2479-3 2.4mm 2.4mm DC 50 1.06 50
24FPM-24F+ DJ3008 2.4mm 2.4mm DC 50 1.04 50
35F-35F50+ DJ1733 3.5mm 3.5mm DC 34 1.07 50
35F-35M50+              DJ1734                        3.5mm 3.5mm DC 34 1.07 50
35M-35M50+ DJ1863 3.5mm 3.5mm DC 34 1.02 50
35FFL-35F50+ DJ1821-2 3.5mm 3.5mm DC 33 1.07 50
135F-135F+ DJ3602 1.35mm 1.35mm DC 90 1.05 50
135F-135M+ DJ3602-1 1.35mm 1.35mm DC 90 1.08 50
135F-185F+ DJ3602-7                   1.35mm 1.85mm DC 67 1.03 50
135F-185M+ DJ3602-8 1.35mm 1.85mm DC 67 1.05 50
135M-135M+ DJ3602-2 1.35mm 1.35mm DC 90 1.07 50
135M-185F+ DJ3602-9 1.35mm 1.85mm DC 67 1.05 50
135M-185M+ DJ3602-10
1.35mm 1.85mm DC 67 1.04 50
185B-185B+ DJ2477-3 1.85mm 1.85mm DC 67 1.04 50
185F-24F+ DJ2477-1 1.85mm 2.4mm DC 50 1.08 50
185F-24M+ DJ2264-1 1.85mm 2.4mm DC 50 1.08 50
185F-185F+ DJ2477-2 1.85mm 1.85mm DC 67 1.05 50
185F-KF+ DJ2381-1 1.85mm 2.92mm DC 40 1.05 50
185F-KM+ DJ2383-1 1.85mm 2.92mm DC 40 1.04 50
185M-24F+ DJ2591-3 1.85mm 2.4mm DC 50 1.06 50
185M-24M+ DJ2479-1 1.85mm 2.4mm DC 50 1.04 50
185M-185F+ DJ2591-2 1.85mm 1.85mm DC 67 1.04 50
185M-185M+ DJ2479-2 1.85mm 1.85mm DC 67 1.04 50
185M-KF+ DJ2382-1 1.85mm 2.92mm DC 40 1.04 50
185M-KM+ DJ2384-1 1.85mm 2.92mm DC 40 1.03 50
24MR-24M-T+ DJ2442-11
2.4mm 2.4mm DC 40 1.1 50
KB-KB50+ DJ3050 2.92mm 2.92mm DC 40 1.03 50
KF-24F+ DJ2381 2.92mm 2.4mm DC 40 1.1 50
KF-24M+ DJ2382 2.92mm 2.4mm DC 40 1.1 50
KF-KF50+ DJ1860 2.92mm 2.92mm DC 40 1.03 50
KF-KM50+ DJ1861 2.92mm 2.92mm DC 40 1.04 50
KF-SF50+ DJ1860-1 2.92mm SMA DC 18 1.06 50
KFFL-KF50+ DJ2261     2.92mm 2.92mm DC 40 1.05 50
KFNMD-KM+ DJ2931-1 2.92mm 2.92mm DC 40 1.06 50
KFPM-KF50+ DJ2261-2 2.92mm 2.92mm DC 40 1.08 50
KFR-KM50+ DJ2442-3
2.92mm 2.92mm DC 40 1.07 50
KM-24F+ DJ2383 2.92mm 2.4mm DC 40 1.1 50
KM-24M+ DJ2384 2.92mm 2.4mm DC 40 1.1 50
KM-35F+ DJ3418 2.92mm 3.5mm DC 33 1.04 50
KM-KM50+ DJ1862 2.92mm 2.92mm DC 40 1.02 50
KM-KM50-T+ DJ1862-1 2.92mm 2.92mm DC 40 1.03 50
KMNMD-24MNMD+ DJ2931-3 2.92mm 2.4mm DC 40 1.06 50
KMR-24F+ DJ2442-9
2.4mm 2.92mm DC 40 1.09 50
KMR-KM50+ DJ2442-4 2.92mm 2.92mm DC 40 1.06 50
NF-BM50+ DJ1011 N BNC DC 2 1.15 50
NF-NF50+ DJ1092 N N DC 6 1.2 50
NF-NM50+ DJ1028-1 N N DC 11 1.04 50
NF-NMR50+ DJ2575 N N DC 6 1.02 50
NF-NMR50-18+ DJ2575 N N DC 18 1.06 50
NF-SF50+ DJ827 N SMA DC 18 1.2 50
NF-SM50+ DJ826 N SMA DC 18 1.2 50
NFFL-NF50+ DJ1808-3
N N DC 9 1.07 50
NFFL-SF50+ DJ1808
N SMA DC 18 1.2 50
NFFL-SM50+ DJ1808-1
N SMA DC 18 1.08 50
NM-NM50+ DJ2460 N N DC 6 1.03 50
NM-NM50-18+ DJ2460 N N DC 18 1.04 50
NM-SF50+ DJ825 N SMA DC 18 1.25 50
NM-SM50+ DJ824 N SMA DC 18 1.2 50
SB-SF50-27+ DJ3521 SMA SMA DC 27 1.03 50
SF-35M50+ DJ1735 SMA 3.5mm DC 26.5 1.1 50
SF-BF50+ DJ1025 SMA BNC DC 2 1.2 50
SF-BM50+ DJ1023 SMA BNC DC 2 1.2 50
SF-MQK50+ DJ836 SMA SMA DC 18 1.25 50
SF-SF50+ DJ952 SMA SMA DC 18 1.25 50
SF-SFRP50+ DJ2747 SMA SMA DC 12 1.2 50
SF-SM50+ DJ836 SMA SMA DC 18 1.28 50
SF-SM50-27+ DJ3488-1 SMA SMA DC 27 1.08 50
SF-SMRP50+ DJ836 SMA SMA DC 12 1.2 50
SFFL-SF50+ DJ1821 SMA SMA DC 18 1.13 50
SFR-KF50+ DJ2442-6
SMA 2.92mm DC 18 1.11 50
SFR-NM50+ DJ2556 SMA N DC 18 1.13 50
SFR-SM50+ DJ2442-7
SMA SMA DC 18 1.09 50
SM-BF50+ DJ1024 SMA BNC DC 2 1.2 50
SM-BM50+ DJ1022 SMA BNC DC 2 1.2 50
SM-SM50+ DJ951 SMA SMA DC 18 1.3 50
SM-SM50-27+ DJ3488-2 SMA SMA DC 26.5 1.05 50
SMPF-SF50+ DJ2142 SMP SMA DC 18 1.07 50
SMPF-SF50-27+ DJ3488-3 SMP SMA DC 27 1.09 50
SMPF-SM50+ DJ2143 SMP SMA DC 18 1.07 50
SMPM-24M+ DJ2382-2 SMP 2.4mm DC 40 1.1 50
SMPM-SF50-27+ DJ3488-4 SMP SMA DC 27 1.05 50
SMPMR-SM50+ DJ2442-5
SMP SMA DC 26.5 1.1 50
SMRP-SM50+ DJ951 SMA SMA DC 12 1.22 50
WR10-10R+ UW3674 1.0mm WR10 UG387/U 75 110 1.2 50
WR12-10R+ UW3676 1.0mm WR12 UG387/U 60 90 1.2 50
WR15-185R+ UW3675 1.85mm WR15 UG385/U 50 70 1.1 50
WR19-EFR+ UW3147
1.85mm WR19 UG383/U 40 60 1.2 50
WR22-VFR+ UW3147-1
2.4mm WR22 UG383/U 33 50 1.25 50
WR28-KFR+ UW3144
2.92mm WR28 UG599/U 26.5 40 1.2 50
